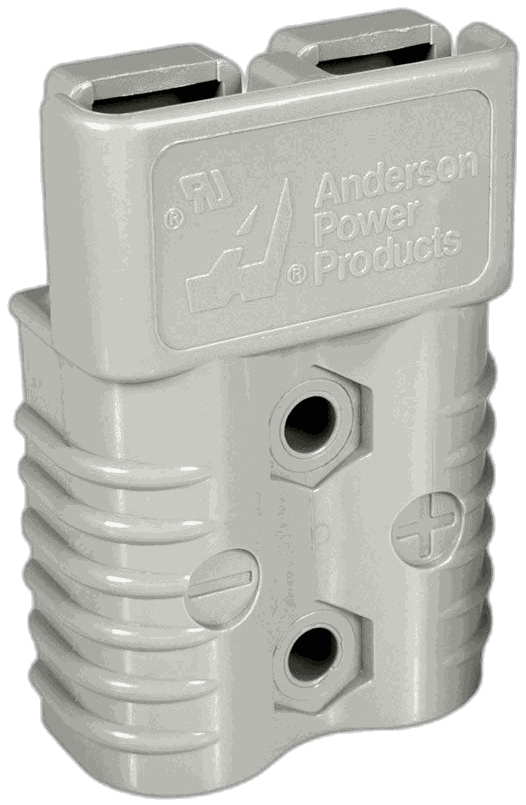

Gray SB175 Standard Housing

About this product

• The second to largest SB housings work with wire contacts up to 1/0 AWG [50 mm²] as well as busbar contacts.
• Genderless design mates with itself. Mechanical keys are color coded.
• Silver Plated Wire Contacts up to 1/0 (50 mm²)
• Allows UL rated currents up to 280 amps
• Chemical Resistant Housing Option
• Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
• UL Rated for Hot Plugging up to 100 Amps
• Great for battery or other applications where the ability to interrupt circuits is required
• Wire, PCB, and Busbar Contacts
